Carbon Fiber High-End Creel System

High-Precision Fiber Feeding System for Advanced Composite Manufacturing

The Carbon Fiber High-End Creel System is a precision fiber feeding unit designed for high-performance composite manufacturing. It ensures stable and efficient delivery of carbon fiber, glass fiber, and other industrial rovings. It is widely used in filament winding, pultrusion, and automated fiber placement processes, serving as a critical front-end system for consistent product quality.

System Structure

The system adopts a modular and industrial-grade design to ensure long-term continuous operation without production interruption.

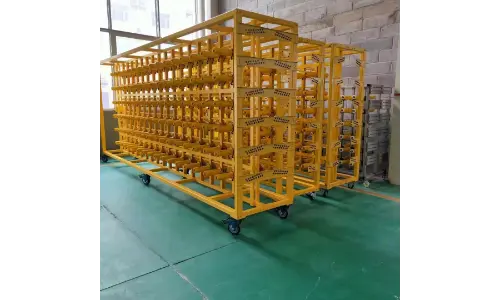

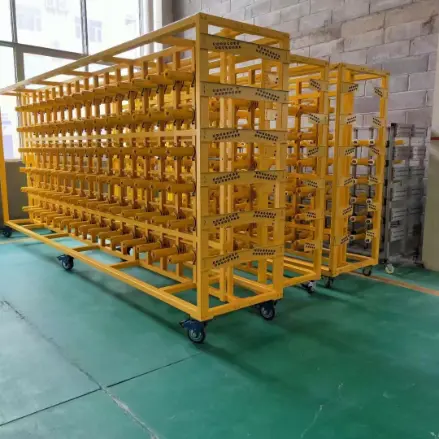

· Creel Frame Structure

Heavy-duty steel frame with anti-vibration design

· Tension Control Unit

Precision mechanical or electronic tension adjustment

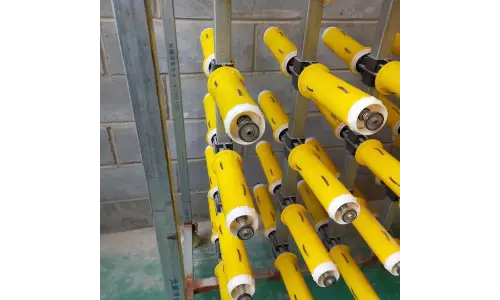

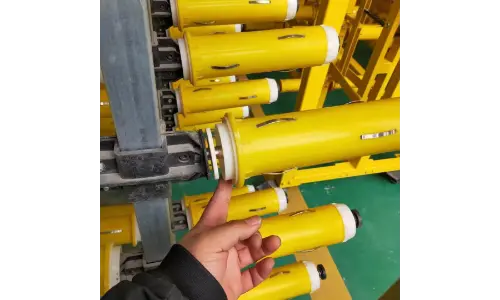

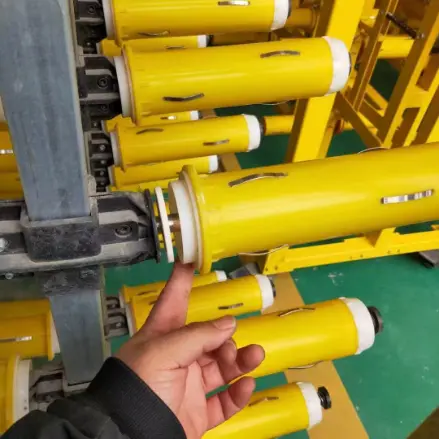

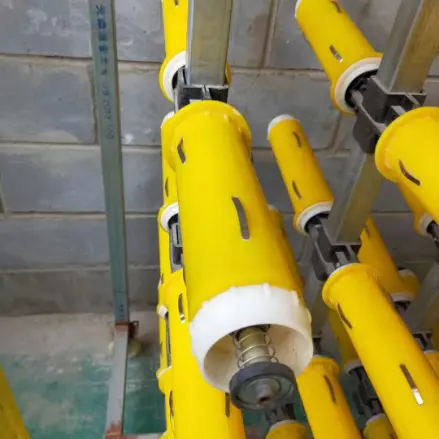

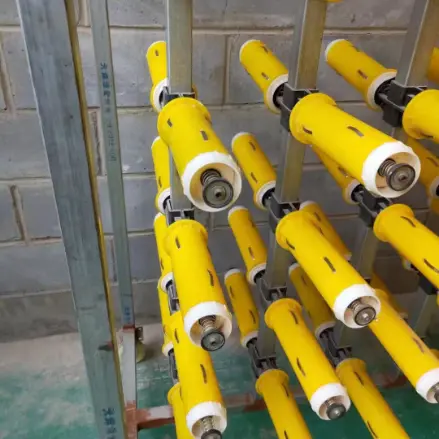

· Fiber Bobbin Holders

Supports multiple fiber bobbins for continuous feeding

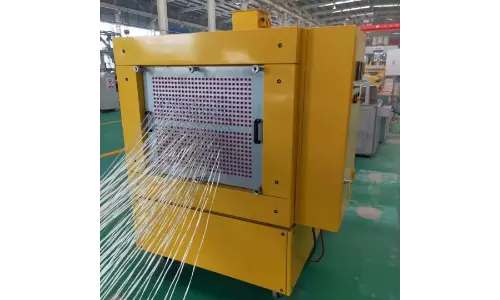

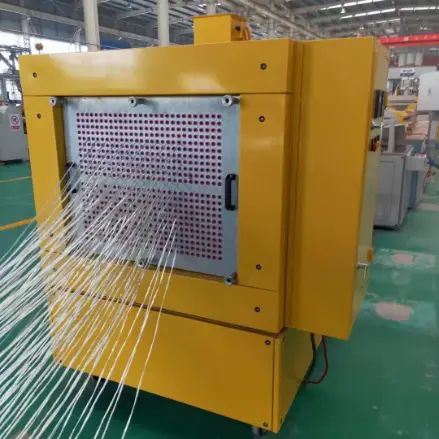

· Guiding Roller System

Ensures smooth fiber path and reduces friction damage

· Anti-Static & Dust Protection

Protects carbon fiber integrity and cleanliness

· Modular Expansion Design

Flexible configuration for different production needs

Key Advantages

· Ultra-stable fiber tension control

· High precision feeding for advanced composites

· Compatible with carbon fiber, glass fiber, aramid fiber

· Continuous production without downtime

· Industrial-grade durability and long service life

· Reduces fiber waste and improves efficiency

Application Fields

This system is widely used in advanced composite manufacturing industries:

· Carbon fiber filament winding machines

· FRP / GRP pipe production lines

· Pultrusion production systems

· Aerospace composite manufacturing

· Automotive lightweight components

· Wind energy composite structures

Engineering Value

The Carbon Fiber High-End Creel System is not just a fiber feeding unit—it is the foundation of stability in composite manufacturing systems. Through precise tension control and stable delivery, it provides highly consistent material input for downstream forming equipment, directly enhancing final product performance.

Summary

This system is the first critical step in high-end composite production, ensuring precision, stability, and efficiency from the very beginning of the manufacturing process.
