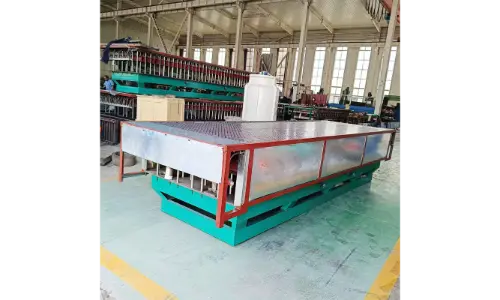

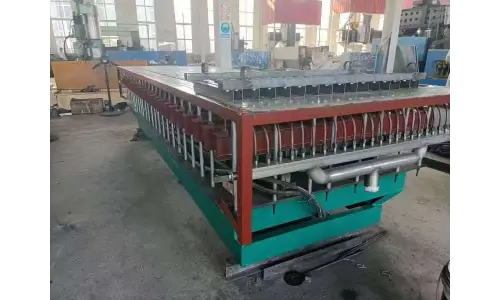

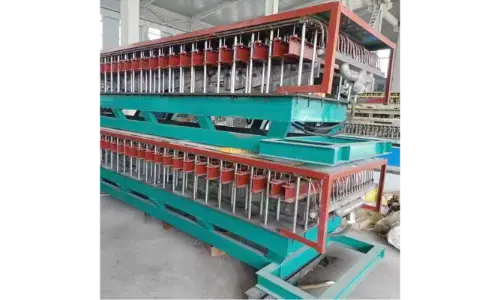

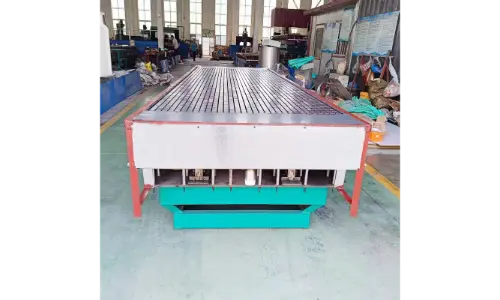

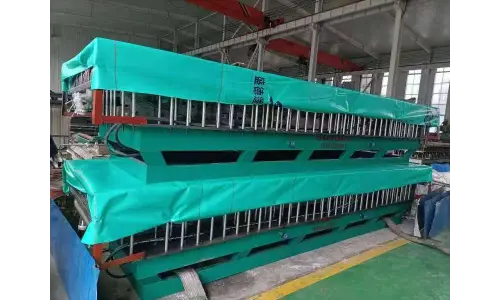

Fiberglass Reinforced Plastic Grating Machine

High-End Industrial Composite Molding Solution

The FRP grating production line is an industrial-grade automated molding system designed for manufacturing high-strength fiberglass reinforced plastic (FRP) grating panels. Through pultrusion, compression molding, or hybrid processes, glass fibers and resin are cured under controlled temperature and pressure to form composite grating with outstanding load-bearing capacity and corrosion resistance.

Core Technology

The system uses high-precision molding and resin curing control technology to ensure uniform fiber distribution and high-density cross-linked structure inside the mold. This guarantees industrial-grade performance in load capacity, impact resistance, and corrosion resistance.

Production Line Configuration

· Fiber Feeding System

Stable fiberglass roving supply with tension control

· Resin Mixing & Dosing

System Precise resin, filler, and curing agent control

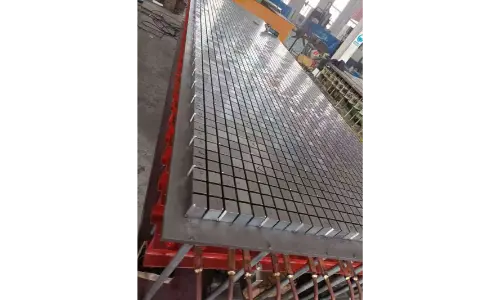

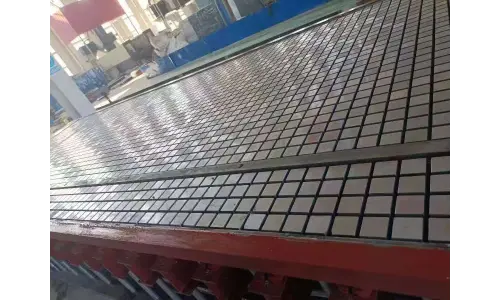

· Molding Press System

High-pressure hydraulic forming for dense structure

· Heating & Curing System

Uniform temperature control for stable curing

· Cutting System

Automatic precision cutting for standard sizes

· PLC Control System

Full automation with touchscreen operation

Machine Advantages

· High strength-to-weight ratio composite structure

· Excellent corrosion resistance against chemicals, seawater, and acids

· Anti-slip surface design for safety applications

· Long service life with minimal maintenance

· Stable production with consistent panel quality

· Energy-efficient and environmentally friendly process

Application Fields

FRP grating is widely used in demanding industrial and infrastructure environments:

· Chemical plants & corrosion-resistant flooring

· Offshore platforms & marine engineering

· Wastewater treatment plants

· Power plants & industrial walkways

· Oil & gas industrial facilities

· Food processing & clean industrial environments

Engineering Value

FRP grating systems provide a modern replacement for steel and wood structures, offering superior corrosion resistance, lighter weight, and longer service life. They significantly reduce maintenance costs while improving safety and operational efficiency in industrial environments.

Industrial Impact

This equipment is not just a production machine — it is a complete industrial solution for next-generation composite flooring systems, enabling manufacturers to produce high-performance grating for global infrastructure markets.
